Voltage Convert Frequency Module 0-10V Voltage Convert 0-10K
Overview
LC voltage convert frequency module LC_V2F can generate different frequencies according to the discretion of the input voltage of the module.Put 0-10V voltage into 0-10KHz frequency pulse signal.
Function features
1.Input voltage, output frequency signal.
2.Can adjust potentiometer to calibrate the corresponding relationship of voltage and frequency.
3.This module output can supply drive for pulse signal, Yang connection with matching available to drive.(12 V power supply, the string of a resistance of 330 R, 13 to 24 V power supply, to list a current-limiting resistance to 2.7 K line)
4.Operating voltage: 13.5V - 30V.
5.Input controlled voltage range: 0-10V.
6.The output frequency range: 0-10 KHZ
Hardware introduction and description
1.Connection details:

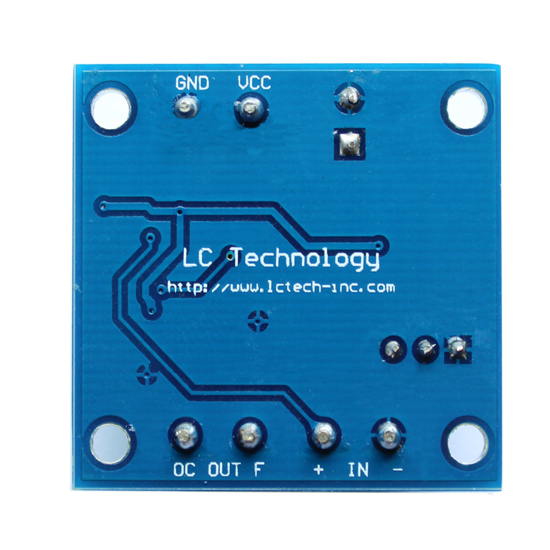

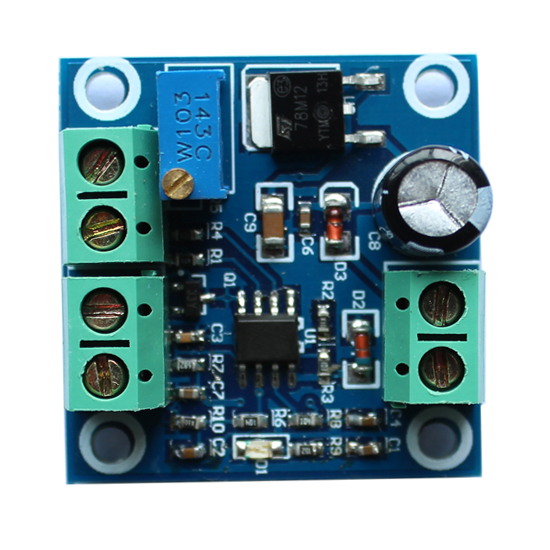

VCC: working power supply.
GND: the power supply.
IN + : the input voltage.
IN - : input fields.
OCOUT: signal collector output port (drivewith the output).
FOUT: frequency output port (gm the frequency of the output).
2.Instructions:
Will pick on F, frequency pulse signal on VOUT is corresponding to the output voltage.
Corresponding relations between input and output:
1 v = 1 KHZ.
10 v = 10 KHZ.
When using corresponding relation if there is a deviation, can adjust potentiometer to calibration.
