Dual way humidifier USB humidifier USB spray module atomizer

Date:2024-09-20 Views:

1、About

The USB dual channel humidifier module adopts the principle of ultrasonic high-frequency oscillation to atomize water into particles of 1-5 microns and diffuse them into the air, thereby achieving the goal of uniformly humidifying the air

2、View

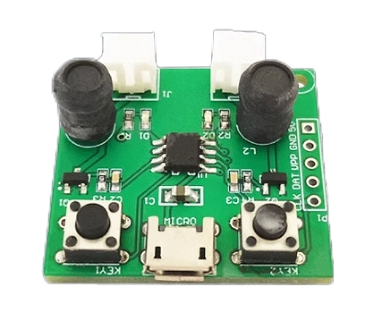

①Front view

②Reverse image

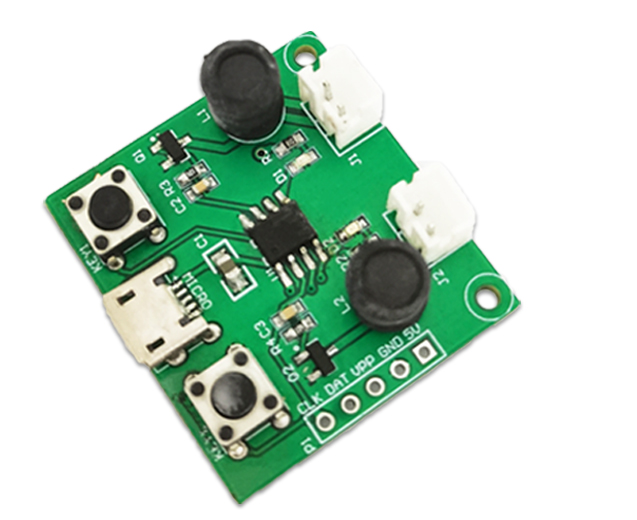

③Side view

3、Introduction and Explanation

Board size: 32 * 29mm/10g

4、Functional Features

①、Adopting ultrafine particle technology to provide a large amount of atomization output, ensuring uniform coverage
②、Low energy consumption design, combined with high conversion efficiency, achieves low-power operation, energy-saving and environmentally friendly
③、Unique circular structure, central spray design, equipped with ultra-fine aperture nozzle, precisely control the spray effect
④、The device is compact in size, easy to operate, and convenient to carry and use

5、Instructions for use

Prepare accessory tools

①. Micro porous atomizing sheet

Voltage 5V, current 300mA, frequency 110KHz, power 2W, aperture 5um, 740 holes, wire length 10cm, atomized steel plate diameter 16mm, rubber ring outer diameter 20mm

②.Humidifier cotton swab

③. Micro USB cable: Power supply

Combination diagram

① Atomizer socket
② Button 1
③ Button 2
④ USB power supply
⑤ Indicator light
Usage
①. Place the cotton swab in water
②. Place the front of the atomizer on a cotton swab
③. Press the button to control the humidifier switch. One button corresponds to one humidifier, and the indicator light for turning on the humidifier lights up

6、Instructions for use

For more usage information, please refer to[https://pan.baidu.com/s/1aflvAT0cySTIoiWnm5irAg Baidu Cloud Drive] Extraction code: 0cld
