Imported original NRF24L01 + 2.4 G wireless transceiver modu

Date:2019-01-24 Views:

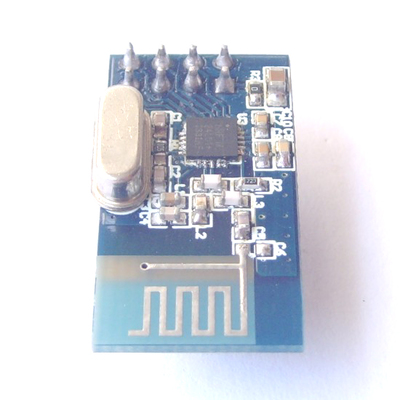

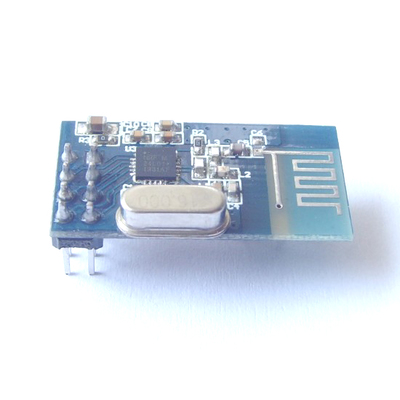

1.on-board import original NRF24L01 + single-chip wireless transceiver chip

2.on-board high-performance 2.4 G microstrip antenna

3.on-board high precision patch capacitance, make the module work more stable

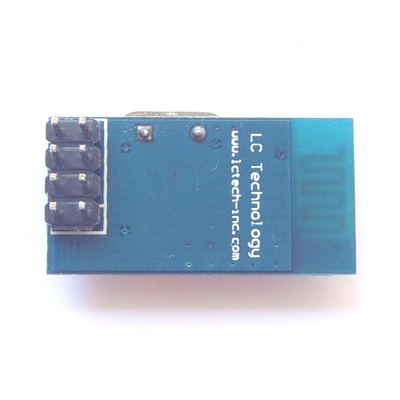

4.2x4 onboard standard interface, double row needle used in SPI interface connected to the MCU,

rate of 0 ~ 8 MBPS

5.2.4 ~ 2.5 GHz ISM frequency global free application

6.125 communication channel, meet more communication, grouping, frequency hopping application requirements, etc

7.working voltage range: 1.9 V to 3.6 V, current is lower than 1 uA(under Standby mode)

8.the board size: 28.8 (mm) x15 (mm)
