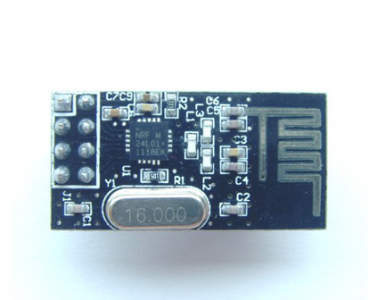

the wireless module NRF24L01+ (send material)


the wireless module NRF24L01+ (send material)






NRF24L01 + suffix is with "+" with "+" module of the actual distance than 24 l01 module (with no "+") of at least 10 meters far, stability factor is also very good, more than 24 l01 (with no "+"), the price is much higher.



Function:



2 mbit/s, 1 mbit/s, three optional 250 kbit/s transmission rate



MultiCeiver hardware provides the function of the six receiver at the same time



Slice of the link layer within the software design is more simple



2 mbit/s that makes it possible to high-quality VoIP



2 mbit/s 1 mbit/s three optional 250 kbit/s transmission rate



Few peripheral component provides low cost possible



+ / - 60 PPM crystal



Only in the antenna matching need external inductance



Don't need to multilayer PCB



The tolerance of 5 v input level



Without external level translator



Can facilitate improved ShockBurst and serial interface with all kinds of low-cost MCU connection



Without MCU with SPI interface



20 pin 4 x4mm QFN lead-free packaging very few peripheral components



Under 2 mbit/s rate when receiving the peak current of 12.5 mA



@ 0 DBM under 2 mbit/s rate of the output of the peak current 11 ma



The rate of 2 mbit/s just a small average current



The power consumption of 400 na power lost mode



The power consumption of 32 ua standby mode



130 us quickly switch and wake time



With on-chip voltage regulator oltage regulators



Can work at 1.9 to 3.6 V low voltage Most likely to reduce noise



Application:



Mouse and keyboard, wireless headset, intelligent sports equipment, remote control, voice applications, safety devices, toys, VOIP applications
