Raspberry Pi 5 PCIe M.2 (Dual) Solid State Drive Extended Ed

Date:2024-11-04 Views:

a) About

Tailored for the latest Raspberry Pi 5 PCIe interface, ensuring perfect compatibility and efficient performance
By using a 16PIN 0.5mm spacing FPC (Flexible Printed Circuit Board) ribbon cable, a single PCIe interface is expanded to a dual NVMe M.2 solid-state drive interface, achieving a dual increase in storage capacity and speed
By utilizing NVMe technology, data read and write speeds are significantly improved, providing a smoother user experience and more efficient data processing capabilities
Simple design, easy installation, no need for complex settings, can easily expand storage devices, meeting your needs for high-speed storage

b) View

1、Front view

2、Side view

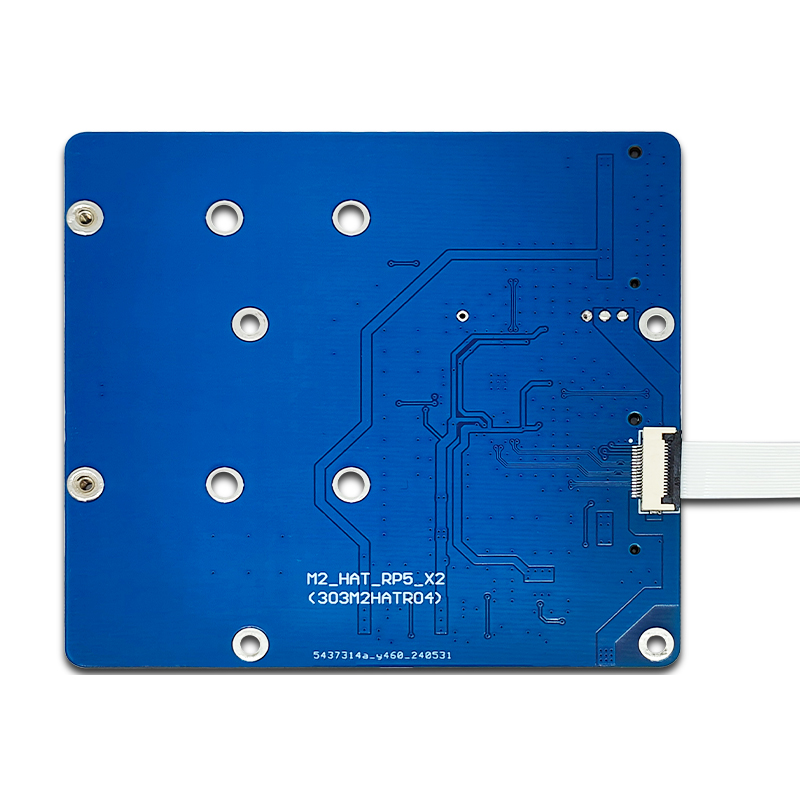

3、Reverse image

c) Hardware Introduction and Explanation

Board size: 88 * 82mm 32g

Interface Description

Dual channel solid-state speed measurement real shot

d) Functional Features

1、Intuitive status display: onboard power indicator light and SSD1, SSD2 status lights, real-time display of device status, convenient for users to monitor and diagnose
2、High performance storage support: compatible with NVMe protocol solid state drives with 2280 specifications, providing high-speed data read and write performance. However, please note that this product does not support use as a boot disk
3、Stable connection design: The M2.5 hexagonal copper pillar is tightly connected to the Raspberry Pi 5 to ensure the stability and reliability of data transmission
4、Compatibility and Scalability: Designed specifically for Raspberry Pi 5, easy to install, and providing additional storage expansion options to meet users' diverse storage needs

e) Wiring diagram

1、Front view

2、Side view

f) Download User Manual

For more product information, please refer to [Baidu Netdisk] extraction code: sj7n
