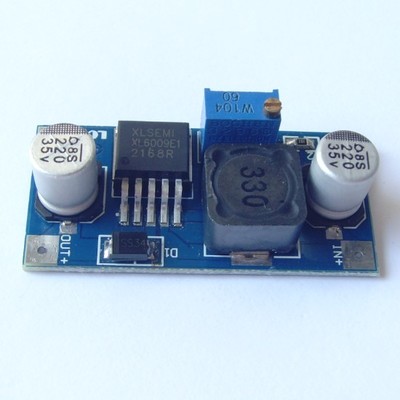

Online consultingModule properties: unfenced step-up (BOOST)
Input voltage: 3-32V
Continuous adjustable output voltage: 5V-35V
Input current: 4 a (Max), no-load 18 ma
Module size: 44.7 (mm) x21.7 (mm)
Input mode: IN + input level is, the IN - negative input
Output mode: OUT + output level is, the OUT - output is negative
Conversion efficiency: < 94% (the lower the pressure difference, the greater the efficiency)
Output ripple: 50 MV (the bigger the higher the voltage, current and ripple)
