ATX Power Adapter Strip Power Strip Power Module USB Chargin

Date:2024-11-08 Views:

a) About

This product is an innovative USB charging desktop computer case computer power solution designed specifically for the diverse charging needs of modern electronic devices. It integrates ATX adapter board power strip technology, realizes modular power output wiring, and provides users with a multifunctional and highly compatible charging platform through six USB ports on the board. Whether it's a mobile phone, tablet, flashlight, or power bank, you can all get a fast and stable charging experience through this case power supply.

b) View

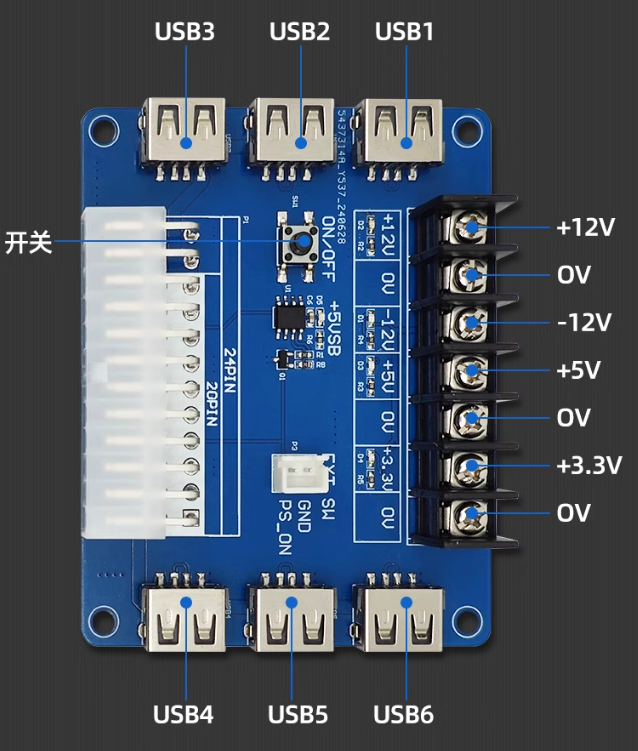

①Front view

②Side view

③Reverse image

c) Introduction and Explanation

Board size：88*70mm/50g

d) Functional Features

1. Good compatibility, compatible with 20PIN and 24PIN ATX computer power supplies
2. Tap the switch to start and close with one click
3. Onboard with 6 USB ports, capable of charging multiple devices.
4. Reserved modification interface external switch

e) Instructions for use

Insert the 24PIN or 20PIN ATX power module cable according to the markings on the board, and press the button to start the power. The LED lights on the board are on, indicating that there is voltage output. Press the button again to stop the power output.
