Motor Speed Hall Switch Sensor Module Smart Car Accessories
Date:2023-09-06 Views:

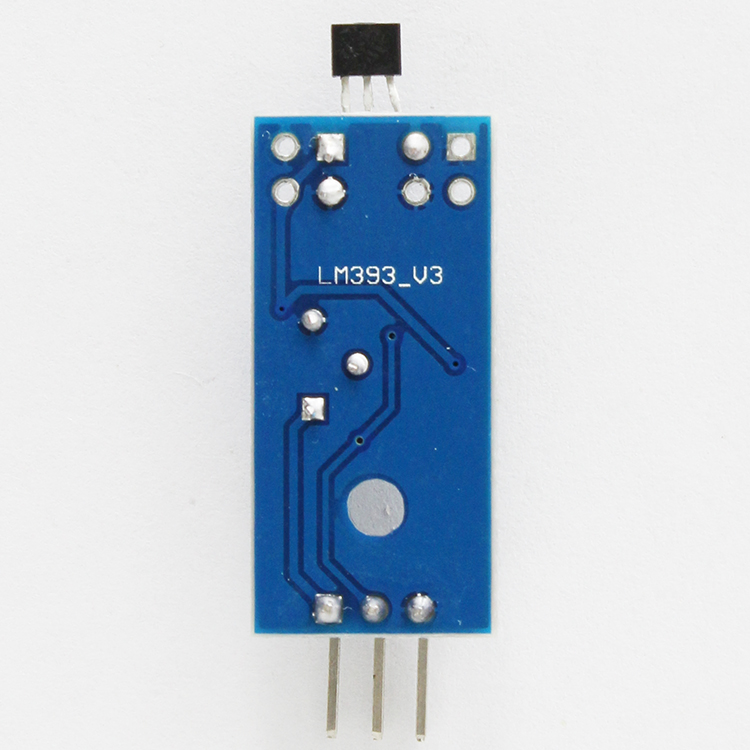

Function features 1. On-board LM393 voltage comparator chip and Hall sensor probe
2. Supported 5V/3.3V power supply
3. The output signal is active low and the indicator LED will on,it’s can be connect to the MCU I/O directly
4. The sensitivity of signal detection can be adjusted
5. With 3mm screw holes, easy to install
Hardware introduction and description 1.Board size: 42*60mm
2.Functions of the board
(1)Interface description VCC: Power supply anode
GND: Power supply cathode
OUT: Digital signal output
