a) About

The LC ESP8266 ESP32-C3-12F programmer is suitable for firmware burning testing of Ai-Thinker ESP-12S/12F/12E/07S/07/01S/01 and ESP32-C3-12F modules.
All IO ports have been led out and can be used as a minimal system development board or small batch burning fixture

b) View

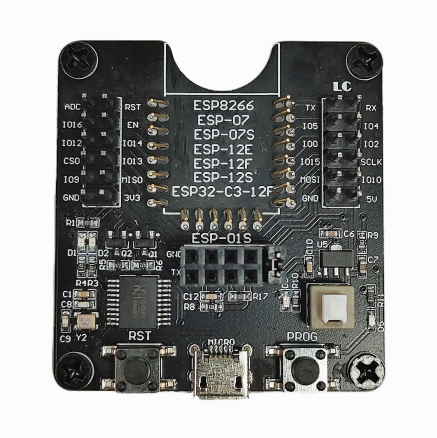

①Front view

②Reverse image

c) Introduction and Explanation

Board size: 46 * 49mm/21g

①Send indicator light
②Receiving indicator light
③Serial port chip
④Reset key
⑤Power supply interface
⑥Burning key
⑦Power indicator light
⑧Power key switch
⑨Burn indicator light

d) Functional Features

1. Suitable for firmware burning testing of ESP-12S/12F/12E/07S/07/01S/01 and other modules
2. Suitable for ESP32-C3-12F firmware burning test
3. One click firmware download function
4. Safe and reliable, small size, long service life
5. And it has power indicator light, burning indicator light, and serial communication indicator light
6. Extract all IO ports, which can be used as a minimal system development board or a fixture for small batch burning

e) Instructions for use

8266 Series User Manual

1、 Download the corresponding CH340 serial chip driver according to the operating system and install
2、Download the official Flash download tool ESPFlashDownloadTool
3、Automatic firmware download:
Pull out the jumper cap in the red circle
Press in the module, insert a USB cable for power supply, and use the Flash download tool to configure the corresponding burning parameters
Click START download to start firmware burning. The downloader will automatically reset and put the module into burning mode
Manual firmware download: Press in the module, plug in the USB cable for power supply, open the burning software, configure the corresponding burning parameters.Long press the burning button, then short press the reset button, click START download to start firmware burning

4、ESP32-C3-12F User Manual
Insert the jumper cap in the red circle on the board
Select ESP32-C3 on the startup interface of ESPFlashDownloadTool burning tool, click OK
On the burning interface, select the burning file of ESP32-C3-12F. Taking Anxinke ESP32 C3 AT firmware as an example, click START to start automatic burning

f) Download User Manual

For more usage information, please refer to[Baidu Netdisk] Extraction code: r1w5
