USB2.0 hub PH2.0 interface version 1-in-4 USBHUB module driv

Date:2024-11-13 Views:

a) About

The USB2.0 HUB_1 to 4 hub module is developed based on the FE1.1s chip, which can expand one USB interface into four USB interfaces. It has a 5V DC input, supports USB high-speed of 480Mbps, comes with LED indicator lights, an input board with a 500mA fuse, and an output USB interface board with a 2A fuse. It has the characteristics of overcurrent protection, high performance, low power consumption, and low cost.

b) View

①Front view

②Side view

③Reverse image

c) Functional Features

Supports USB interface expansion from one to four
Supports USB 2.0 with a transfer speed of up to 480Mbps
Equipped with power indicator light and four-way USB signal indicator light
Onboard input/output fuse, supporting overcurrent protection

d) Introduction and Explanation

Board size：30.2*65mm/12 g

1. Input port: 2.0mm horizontal surface mount terminal

2. Fuse: Input terminal is 500mA, output terminal is 4-channel 2A fuse

3.4 output ports

4. Power indicator light+4-channel USB indicator light

5. USB conversion chip: FE1.1S

e) Instructions for use

1. Install USB drivers on the computer;

2. Connect the input end to the computer's USB port, and connect any USB device to the output end. At this time, the LED power indicator and USB signal indicator will light up;

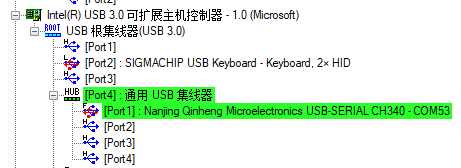

3. At this point, open the USB device viewer or the built-in device manager on the computer, which will display the information of the USB device and the corresponding COM port;
