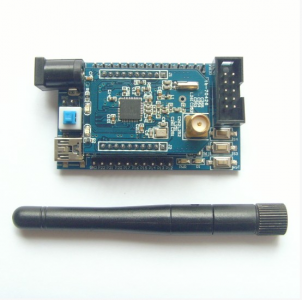

CC2530 ZigBee wireless development board


CC2530 ZigBee wireless development board &development kit






1. onboard CC2530 ZigBee wireless module, commonly used pin with double row needle leads, convenient experimental wiring

2. onboard CH340 chip, can be used for serial communication experiment

3. onboard TI standard CC Debugger interface, easy to download and debug program, can also be used for

analyzer

4. with 5 V to 3.3 V chip AMS1117_3.3, can through the DC power supply, at the same time provide battery

 interface

5. onboard power indicator LED lights and a programmable LED light

6. on-board reset buttons and two programmable buttons

7. board size: 57.9 (mm) x34.1 (mm)
