The CC2430 ZigBee wireless module control board development

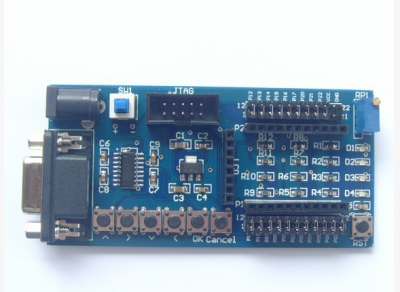

The CC2430 ZigBee wireless module control board development board






1.on board ZigBee wireless module interface, all IO all lines needles leads by shorting cap to control whether to enable experimental pin

2.Nokia5110 LCD module interface onboard

3.on-board the SP3232 chip can be used for serial communication experiment

Onboard TI standard CC Debugger interface, you can easily download and debug the program, the analyzer can also be used

5.with a 5V to 3.3V chip AMS1117-3.3, powered by DC Block reserve battery-powered interface

6.board 10K variable resistor can be used for AD conversion experiments

7.four on-board programmable LED

8.6 onboard programmable keys

9.the board size: 94.7 (mm) x46.6 (mm)
