STM8S903K3T6 development board+1.8 inch LCD I2C serial port

Date:2019-01-25 Views:

1. Brief Introduction of Product
(1) The kernel: STM8 kernel 8-bit;
(2) Working frequency: maximum 16 MHZ;
(3) The board power supply voltage: 5 v to 12 v.
(4)The onboard ASM1117-3.3 V voltage regulator chip;
(5) Storage resources: 8 k Flash, 1 KB SRAM;
(6) Download debugging: support the ISP, IAP.

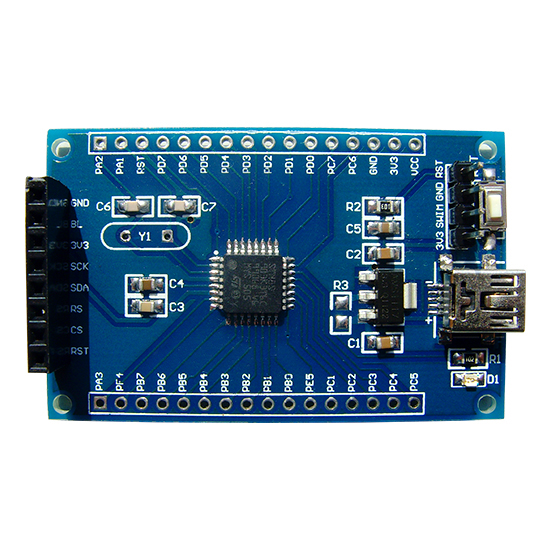

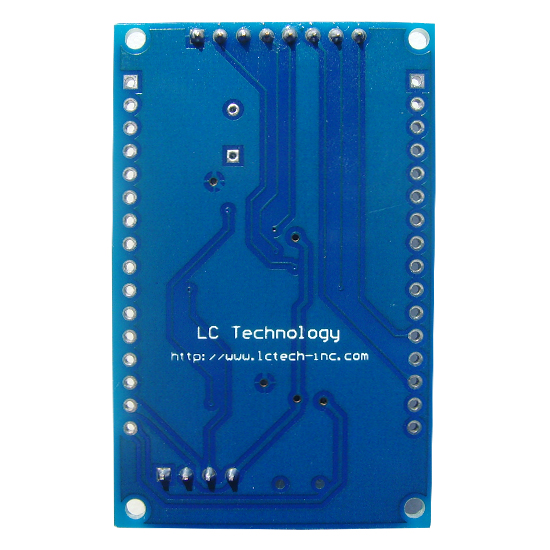

2. Brief Introduction of Development Board
Module support 3.3 V power supply, LCD interface (SPI) onboard a 1.8 -inch LCD screen, no touch function. Compatible with the Arduino, provide a SPI interface, convenient connection other single-chip microcomputer.

3. Brief Introduction of Display Module
Resolution: 128 x160;

Driver IC: ILI9163 with module design has two groups of interface, a set of concise interface, only eight pins, another group is fully compatible with ST7735 LCD interface, convenient customer directly on the Arduino board.

4. Product Size

Previous：STM8S207RBT6 dev.board STM8S minimum system core board

Next：STM8S903K3T6 core board development board with I2C LCD port
