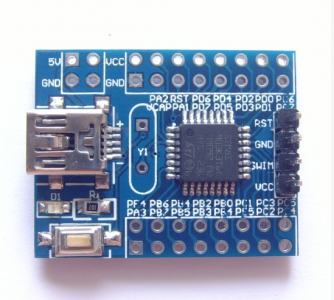

STM8S103K3T6 STM8 core board development board


STM8S103K3T6 STM8 core board development board


1, the onboard STM8S103K3T6 chips.



2, the onboard SWIM interface and the reset button.



3, set aside the external crystal vibration welding position.



4, with 5 chips AMS1117-3.3 V to 3.3 V.



5, all the I/O derivation, and mark the I/O name.



6, the onboard the Mini USB interface, can give the board power supply.

7, the board size: 31.7 (mm) x25 (mm).
